Additional specifications of PowerEdgeR750
We will introduce PowerEdgeR750 to you in detail from the following three aspects：Chassis dimension，Chassis weight，Video specifications. We are committed to providing customers with equipment that meets various customer needs. If you would like to know more, I am here for you.

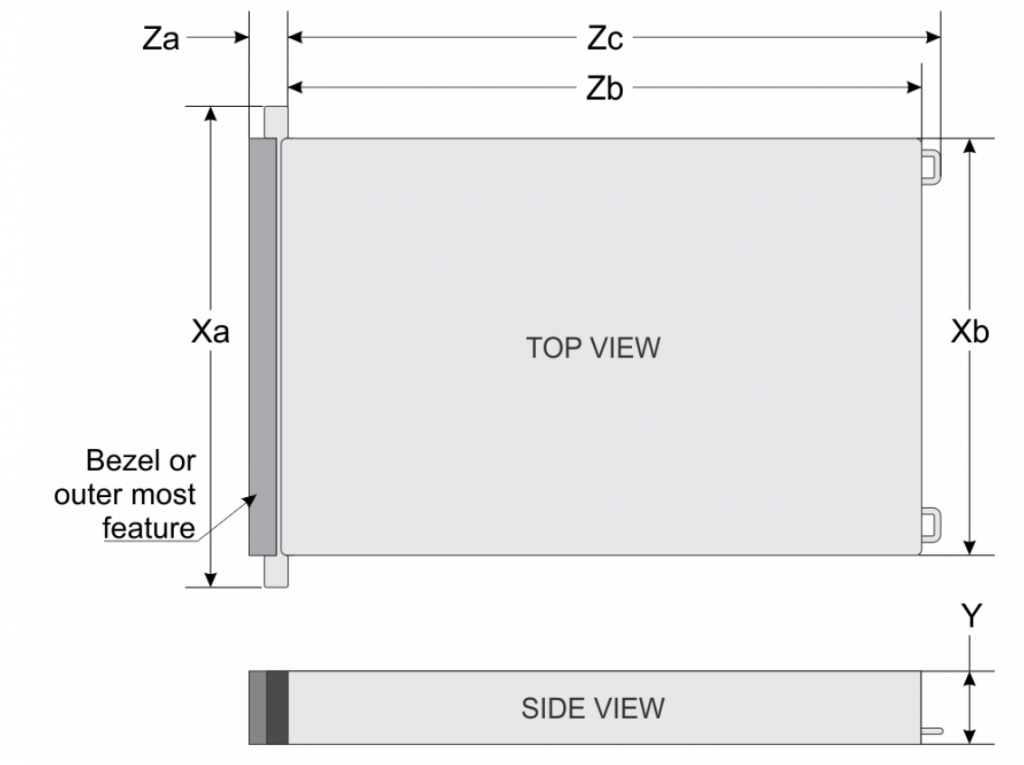

Chassis dimension
The PowerEdge R750 has the following dimensions:
Table 1. Chassis dimension for the system
| Model number |
Xa | Xb | Y | Za with bezel |
Za without bezel |
Zb | Zc | Max Sys Wgt |
Chas sis (U) |
| R750 | 482 mm | 434 mm | 86.8 mm | 35.84 mm | 22 mm | 700.7 mm | 736.29 mm | 35.3 kg | 2U |
Chassis weight
Table 2. Chassis weight
| System | Maximum weight |
| 12x 3.5-inch chassis | 35.3 kg |
| 8x 2.5-inch chassis | 29.6kg |
| 16x 2.5-inch chassis | 32.6 kg |
| 24x 2.5-inch chassis | 35.2 kg |
| No drive chassis | 27.7 kg |
Video specifications
The PowerEdge R750 supports the following video resolution and refresh rates:
Table 3 . Video specifications for PowerEdge R750
| Resolution | Refresh Rate | Freq. | Pixel Clock | DVO DisplayPort |
| 1024 x 768 | 60 Hz | 48.4 kHz | 65.0 MHz | Yes* |
| 1280 x 800 | 60 Hz | 49.7 kHz | 83.5 MHz | Yes* |
| 1280 x 1024 | 60 Hz | 64.0 kHz | 108.0 MHz | Yes* |
| 1360 x 768 | 60 Hz | 47.71 kHz | 85.5 MHz | Yes* |
| 1440 x 900 | 60 Hz | 55.9 kHz | 106.5 MHz | Yes* |
| 1600 x 900 | 60 Hz | 55.54 kHz | 97.75 MHz | Yes* |
| 1600 x 1200 | 60 Hz | 75.0 kHz | 162.0 MHz | Yes* |
| 1680 x 1050 | 60 Hz | 64.7 kHz | 119.0 MHz | Yes* |
| 1920 x 1080 | 60 Hz (RB) | 67.158 kHz | 173.0 MHz | No |
| 1920 x 1200 | 60 Hz (RB) | 74.556 kHz | 193.25 MHz | No |
*DVO - DP is for investigation only, dependent on Nuvoton DVO capabilities to support up to 165MHz.
*(RB) - Reduced Blanking for Digital Displays requiring less blank time. This was introduced for Signal Integrity improvements by
reducing Pixel Clock rates for VGA- Analog input devices.
