32-Port 400 GbE QSFP-DD L3 Spine/Core Switch, Enterprise SONiC Ready
Unleash ultra-high performance with the CX732Q-M-H, a powerful 32×400G QSFP-DD open network switch built for modern enterprise aggregation and spine deployments. At its core is the Marvell Falcon ASIC, delivering an impressive 12.8 Tbps of L2/L3 switching capacity for next-gen data centers and large-scale campus fabrics.
Descriptions
1, 32x400Gb QSFP-DD
2, Enterprise SONiC Distribution by Asterfusion
3, Marvell Falcon for high-capacity IPv4 routing
4, Supports EVPN Multihoming, BGP-EVPN, INT telemetry
5, Ideal for spine/core in cloud-scale campus networks
The CX732Q-M-H switch supports rich networking features: OSPF, BGP, MLAG, IPv6, and VXLAN, BGP-EVPN, EVPN Multihoming for scalable, resilient virtual networks. To ensure maximum throughput efficiency and zero fragmentation for high-bandwidth data transfers, the switch natively supports Jumbo Frames with a default MTU of 9216 bytes. Optional PTP and MPLS support ensures readiness for carrier-grade, time-sensitive workloads.
Designed for cloud-scale agility and open networking flexibility, the CX732Q-M-H is your go-to solution for future-proof network backbones — no vendor lock-in, no compromise.
Specifications
| Ports | 32x 400G QSFP-DD 2x 10G SFP+ |
Switch Chip | Marvell Falcon |
| Switching Capacity | 12.8 Tbps | MAC Address Entries | 32K |
| Forwarding Rate | 5.6 Bpps | IPv4 Prefix Routes | 504K |
| SDRAM | DDR4 16 GB | IPv6 Prefix Routes | 252K |
| SSD Memory | 256 GB | Packet Buffer | 48 MB |
| Hot-pluggable AC Power Supplies | 2 (1+1 Redundancy) | Hot-pluggable Fans | 6 (5+1 Redundancy) |
| Dimensions (HxWxD) | 44x 440x 515mm | Max. Power Consumption | <1000W |
| Operating Humidity | 10-90% | Rack Units | 1 RU |
| Operating Temperature | 0 - 45℃ | Thermal Airflow | Front-to-Rear |

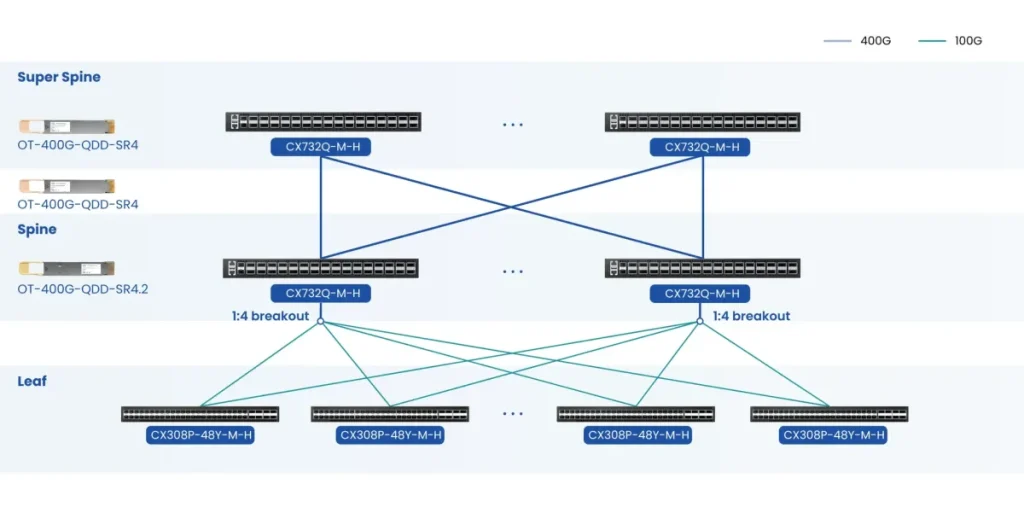

Connectivity Solutions
Comparison of Enterprise Core Switches
|
QSFP28/QSFP-DD Ports
|
SFP+/SFP28 Ports
|
|
|
CX532P-M-H
|
32x 100G QSFP28
|
2x 10G SFP+
|
|
CX732Q-M-H
|
32x 400G QSFP-DD
|
2x 10G SFP+
|
|
CX306P-48Y-M-H
|
6x 100G QSFP28
|
48x 25G SFP28
|
|
CX308P-48Y-M-H
|
8x 100G QSFP28
|
48x 25G SFP28
|
|
Management Layer
|
Power Supply
|
|
|
CX532P-M-H
|
L3+
|
2+1 Hot-pluggable
|
|
CX732Q-M-H
|
L3+
|
2+1 Hot-pluggable
|
|
CX306P-48Y-M-H
|
L3+
|
1+1 Hot-pluggable
|
|
CX308P-48Y-M-H
|
L3+
|
1+1 Hot-pluggable
|
|
Fan
|
PTP
|
|
|
CX532P-M-H
|
4+1 Hot-pluggable
|
Yes
|
|
CX732Q-M-H
|
5+1 Hot-pluggable
|
Yes
|
|
CX306P-48Y-M-H
|
4+1 Hot-pluggable
|
Yes
|
|
CX308P-48Y-M-H
|
3+1 Hot-pluggable
|
Yes
|
|
OSPF, BGP, VXLAN, BGP-EVPN, MLAG, IPV6, PTP, QoS, MPLS
|
||
|
CX532P-M-H
|
Yes
|
|
|
CX732Q-M-H
|
Yes
|
|
|
CX306P-48Y-M-H
|
Yes
|
|
|
CX308P-48Y-M-H
|
Yes
|
